Dual Monitor Setup for Posture: Which Screen Is Primary?

Why the symmetric V destroys your neck

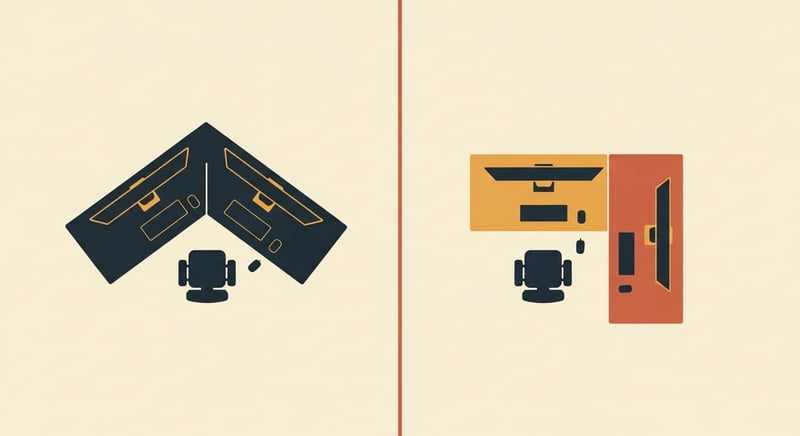

The default dual monitor layout you see in stock photos puts two screens at equal angles facing the user, forming a shallow V with the gap at eye level. It looks balanced. It feels democratic. It also makes you turn your head every time you switch between screens, which over a 9-hour workday adds up to thousands of small rotations that none of your neck muscles signed up for.

A 2023 EMG study in Work journal measured muscle activity across different dual screen layouts. The symmetric V configuration produced significantly higher left upper trapezius and right cervical erector spinae activity compared to an L-shaped layout where one screen sits centered in front and the second sits off to one side ¹. The researchers also recorded greater visual strain in the symmetric layout. The symmetric setup is the worst of the options measured.

The problem is not the two screens. It is the symmetric split. When neither screen is the default focus, your eyes and neck have to do extra work choosing where to land each time you look up from the keyboard. Across a workday, that micro-decision is what tires the cervical spine, not the looking itself.

If you have been blaming your chair or your standing desk for a one-sided neck ache, the dual monitor layout is the first place to look. A bad chair causes generalized low back fatigue. A symmetric monitor V causes a one-sided neck ache that gets worse by 3pm and goes away on weekends.

Pick one screen as primary

The first decision is which screen you actually use more. Not which you think you use more. For one week, notice which app sits open most of the day. That is the screen that should be primary.

For most knowledge workers, the answer is the screen with the IDE, document, or browser tab they actually type into. Email and chat tools belong on the secondary screen, even though it feels like email is the most-used app. You read email constantly but type in it briefly. You stare at the writing tool for hours.

Designers, video editors, and developers usually have a single canvas app (Figma, Premiere, an IDE) that wins on time. That is the primary. Reference material, documentation, and chat go to the secondary.

If the answer truly is 50-50 (a rare honest result), pick the one that involves more reading. Reading at an angle is harder on the eyes than glancing at notifications at an angle, and an angled reading position is the position that drives the most neck rotation when sustained.

Where the primary screen goes

Once you have picked the primary, the rules for it are the same as any single-monitor setup. Center it directly in front of the chair, about an arm's length away, with the top of the screen at or slightly below eye level when you sit naturally upright.

The OSHA computer workstation guidance lists the specifics: viewing distance 20 to 40 inches (50 to 100 cm), monitor center 15 to 20 degrees below horizontal eye line, and the screen directly in front of the user ². These are not arbitrary numbers. They map to the resting position of the cervical spine and the relaxed accommodation distance of the lens of the eye.

Most people get the height wrong, not the distance. The default desk-and-monitor combination puts the screen too low because monitor stands are short and laptops sit flat. The fix is usually a monitor arm or a stack of textbooks under the screen until the top edge lands at your seated eye height. If you are using a laptop as the primary screen, that screen is too low by default, period. Use an external keyboard and either an external monitor or a laptop stand.

If you are not sure whether your current height is right, check monitor height setup for the simple seated test.

Where the secondary screen goes

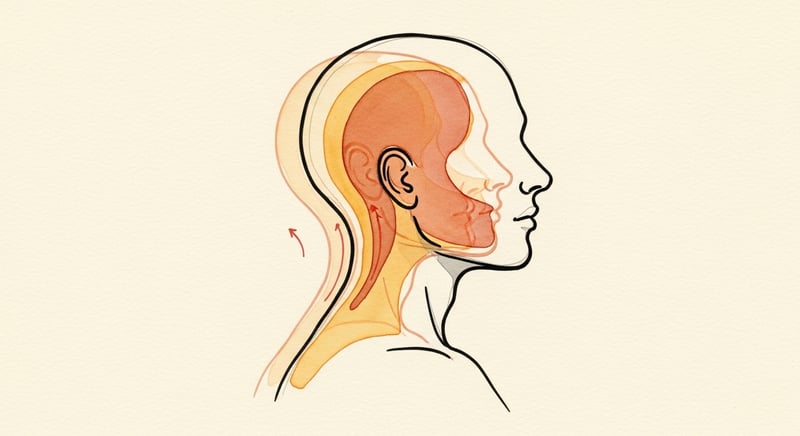

The secondary monitor needs to be reachable for glances but never for sustained reading. The OSHA guidance puts a hard ceiling on this: no screen should sit farther than 35 degrees off-center from your forward gaze ². Past 35 degrees, you stop rotating just your eyes and start rotating your whole neck.

In practice, that means the secondary sits just inside that 35-degree boundary, angled inward toward you (not parallel to the wall) so that the leftmost edge of the secondary screen meets the rightmost edge of the primary. The two screens form a shallow inward arc around you, not a flat plane.

Which side does the secondary go on? Use your dominant hand. Right-handed people generally put the secondary to the right, because the dominant hand reaches the mouse on the right and the dominant eye tends to be on the same side. Left-handed people mirror the setup. If you have a strong sided neck pain already, put the secondary on the OPPOSITE side from the painful side for a few weeks. The rotation pattern stops adding load to the tissue that is already irritated.

Both screens at the same height

Two monitors at different heights force the eye to constantly re-focus and the neck to micro-tilt every time you switch. This is the second most common dual-monitor fault after the symmetric V.

Match the heights. If you cannot move the secondary up enough on its built-in stand, use a stack of books, a small riser, or a monitor arm. The top edge of both screens should land at the same horizontal line. Brand consistency does not matter (a 24-inch and a 27-inch can both work) as long as the top edges line up.

A 2017 Human Factors study compared dual-monitor work with a centered raised primary screen against laptop work and found the dual setup reduced cervical muscle activity and preserved typical neck repositioning patterns ³. The key word in the study description is raised. The default sitting-on-the-desk position is too low for both monitors, not just one of them.

Build in micro rotation resets

Even with a clean primary-secondary layout, you will still spend a third of your day looking at the secondary screen, which means some neck rotation is unavoidable. The fix is not to remove it but to alternate it.

Every hour, deliberately do a full slow neck rotation in both directions while seated. Five seconds to the left, five seconds to the right, with the eyes following. This is not exercise. It is a reset that prevents the rotational muscles from spending the whole day in a slightly contracted position.

If you spend serious hours at the secondary screen for a specific task (say, a 90-minute meeting where the video call is on the secondary), physically swivel your chair to face the secondary directly for the duration. Then swivel back. Rotating your chair beats rotating your neck every single time, and people forget this is an option.

Pair this with the same cervical-flexor training that helps any forward-head pattern. The deep neck flexors are the muscles that hold the head over the shoulders, and when they are weak, your neck defaults to dragging your head forward and to the side toward whatever screen has your attention. Chin tucks are the highest-yield exercise for this. Building them up over weeks means your neck does not need as much external support from the monitor placement to stay neutral.

When dual monitors are the wrong answer

Dual monitors are not the right setup for everyone. If your work is fundamentally single-task (writing, coding, design) and you only glance at the second screen a few times an hour, a single large monitor often beats two smaller ones. A 32-inch ultrawide gives you the screen real estate without any rotation at all.

If you already have neck pain from forward head posture and the dual setup is not helping after two weeks of asymmetric layout, simplify to one centered screen for a month. See if the pain settles. You can always add the second back. If the pain settles only when the second screen goes away, you are a single-monitor person whether you like it or not. The setup serves your body, not the other way around. For the underlying mechanism, forward head posture covers what the head-forward pattern actually does to the cervical spine.

And if neither setup helps and the pain is one-sided and persistent, especially with arm symptoms, know when to see a professional. Some sided neck pain is a stuck joint, not a monitor problem, and an ergonomic fix will not move it.
