Split Keyboards and RSI: Why the Geometry Only Works When Three Other Conditions Also Change

What hurricane formation actually requires

Gray's 1968 paper is still the foundational citation for tropical cyclogenesis because it changed the question. Before 1968, meteorologists asked what causes hurricanes. After 1968, they asked what permits them.⁹ The answer was a list of necessary conditions, each one with a measurable threshold. Sea surface temperature has to exceed about 26.5 degrees Celsius through at least the upper 50 meters of ocean. Vertical wind shear between the surface and the upper troposphere has to stay low, under about 37 kilometers per hour. The atmosphere has to be unstable enough to support deep convection. Mid-tropospheric humidity has to be high. A pre-existing low-pressure disturbance has to provide the initial rotation. And the location has to sit far enough from the equator (roughly five degrees latitude minimum) for Coriolis force to organize the rotation.

The structure that follows from this list is what matters for the analogy. Each condition has its own physics. Each can be modified independently. And the storm only forms when all of them are present together. Cool the ocean by half a degree and a forming system fizzles. Add 20 kilometers per hour of wind shear and the convection scatters. Most tropical waves that move off the African coast during hurricane season die because one or two of the six conditions are missing. The ones that become category-five storms are the ones that crossed every threshold at once.

The implication is structural. Prevention work on hurricanes is the wrong frame; the storms cannot be prevented and forecasting them is what we do instead. The implication for any injury or condition that follows the same multi-condition genesis is different. If you can break any one of the necessary conditions, you stop the event. You do not need to address all of them at once. You need to find the one you can change and change it permanently.

Carpal tunnel is the same kind of event

The repetitive strain literature took longer to converge on the multi-condition view. For most of the 1980s and 1990s, occupational injury research debated which single risk factor mattered most. The 2015 pooled study by Harris-Adamson and colleagues in Occupational and Environmental Medicine settled the question by pooling data from five independent prospective studies, with 2,474 workers followed for up to 6.5 years.⁷ The analysis identified four biomechanical risk factors that each predicted carpal tunnel syndrome independently: hand force during work tasks, repetition rate, duty cycle (the percentage of work time the hand is active), and non-neutral wrist posture. Each had its own effect, statistically separable from the others.

The clinical pattern matches the meteorology. A person with high wrist deviation but low force, low repetition, and short duty cycle rarely develops carpal tunnel. A person with neutral wrist posture but high force on every keystroke, hours per day, often does. The condition needs the constellation. That is why two coworkers at adjacent desks, using the same keyboard, can have completely different outcomes. They are typing at different rates, with different keystroke forces, for different durations, with different baseline tissue states.

The 2008 systematic review by Thomsen and colleagues in BMC Musculoskeletal Disorders reached the same conclusion from the other direction. Reviewing eight epidemiological studies of computer keyboard and mouse use, the authors concluded that there is insufficient evidence to call computer work itself a cause of carpal tunnel syndrome.⁸ Keyboard exposure correlates with hand pain in some studies and not in others, depending on which of the other conditions the population happened to also have. This is not a failure of the research; it is the multi-condition view showing up in the data. Single-factor studies of a multi-condition event produce inconsistent results by definition.

What a split keyboard actually does

The keyboard literature is clear on the mechanical effect. Marklin, Simoneau, and Monroe published the foundational measurement study in Human Factors in 1999, testing 90 office workers across split and conventional keyboards.² The conventional keyboard produced average ulnar deviation of approximately 12 degrees, which is well outside the neutral range. The split keyboards, when configured correctly, brought average ulnar deviation to within 5 degrees of neutral. That is a real change in the wrist-posture risk factor.

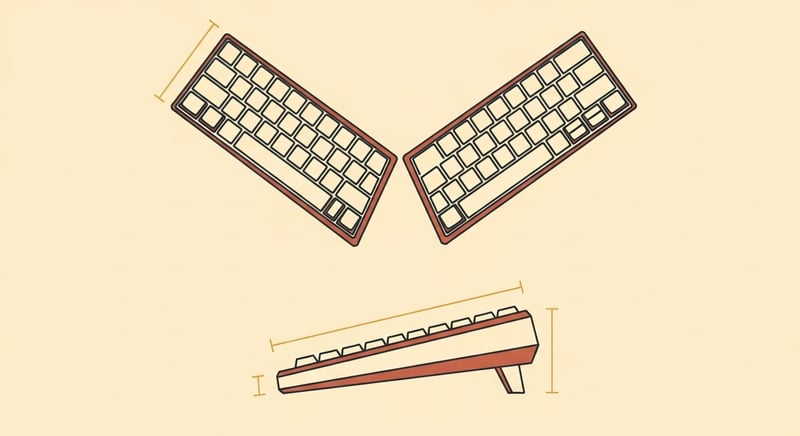

The 2007 study by Rempel and colleagues in Applied Ergonomics narrowed the geometry further.⁶ Testing six different keyboard designs across opening angles, gable angles, and slopes, the authors identified the most-neutral configuration: a 12-degree opening angle (the angle between the two halves), a 14-degree gable (the tenting that lifts the inside edges of each half), and zero-degree slope (flat with the desk, not tilted up at the back). At those specific parameters, wrist deviation, extension, and forearm pronation were all minimized simultaneously.

The 2006 meta-analysis by Baker and Cidboy in the American Journal of Occupational Therapy isolated the tenting effect specifically.³ Across the three keyboard categories they examined, adjustable open-tented keyboards had the largest single effect on forearm pronation, with a correlation coefficient of 0.85 between tenting angle and reduction in pronation. The tenting works because the natural resting position of the forearm is somewhere between full pronation (palm down) and neutral (palm angled slightly inward), and forcing the hand flat onto a conventional keyboard locks the forearm into full pronation for hours per day.

Rempel's 2009 Ergonomics study extended the effect chain up the arm.⁴ Lower keyboard height led to lower elbow height, which led to less shoulder elevation. The kinetic chain through the wrist, elbow, and shoulder is one continuous load path, and changing the geometry at the keyboard changes the loading at every joint above it. The piece on keyboard and mouse ergonomics covers the desk-positioning side; this piece focuses on what the keyboard itself contributes.

What it does not do

The honest summary of the wrist-posture effect leaves three other risk factors untouched. The split keyboard does nothing about hand force; if your typing produces high keystroke forces because of the switch mechanism or because you bottom out hard on every press, that condition stays the same. The split keyboard does nothing about repetition rate; if you type 80 words per minute for eight hours a day, your finger flexors and extensors cycle through the same load. The split keyboard does nothing about duty cycle; if your work pattern keeps your hands on keys for 90 percent of your shift instead of giving them recovery between blocks of typing, the cumulative dose stays the same.

Marklin's 2004 review in the Journal of Orthopaedic & Sports Physical Therapy was explicit about this gap.¹ Reviewing the experimental data on alternative keyboards, the authors concluded that ergonomic positioning improvements are real, but that controlled trials are needed to confirm whether these improvements actually prevent or treat work-related upper extremity disorders. The position changes; the injury rates may or may not change correspondingly. The 2008 Thomsen systematic review reached a similar conclusion from the population-level side, finding the keyboard-CTS link inconsistent across studies.⁸

This is exactly what the multi-condition view predicts. Reducing one of four necessary conditions changes the probability of the event in some users (those whose other three conditions are close to threshold) without changing it much in others (those whose other three conditions are far below or well above threshold). A randomized trial of split-keyboard adoption that does not stratify by force, repetition, and duty cycle will find an effect in some sub-populations and not others, and the average effect will look weaker than it is.

There is a separate question of which sub-population the average reader falls into. If your work is high-force, high-repetition, high-duty-cycle typing, a split keyboard alone will not be enough. If your work is low-force, low-repetition, with significant non-typing time, a split keyboard may be sufficient to keep you below the genesis threshold for any one of the conditions. Most knowledge workers sit somewhere in the middle, which is why the keyboard helps but is not the complete answer.

The other three conditions, in detail

Addressing force means reducing the work each keystroke requires. The switch mechanism is the lever here. Linear and tactile mechanical switches in the 35 to 55 gram actuation range, with around 2 millimeter pretravel before the registration point, let a typist register a key without bottoming out. Hard rubber-dome keyboards and high-actuation-force switches push the force factor up. The training side matters too. Many touch typists learned on heavy keyboards and developed bottoming-out habits that persist regardless of the switch underneath. Conscious lightening of the strike, especially on capital letters and shifted characters, drops force per keystroke meaningfully.

Addressing repetition rate is more about the work than the equipment. Code editors with smart completion, text expanders, and dictation for long-form composition all reduce the number of keystrokes per hour without reducing the work output. The piece on posture and cognitive performance covers the broader argument that protecting the body and the mind both depend on adjusting the work pattern, not just the tools.

Addressing duty cycle is the most direct intervention available to most people. The 50-10 rule (50 minutes typing, 10 minutes off-keyboard) is the classic version. Studies of micro-break programs in office workers consistently show measurable reduction in upper-extremity symptoms when the breaks are structured into the routine. Even moving away from the keyboard for two minutes every 30 minutes, while reading or thinking through the next problem, changes duty cycle from continuous to interrupted. The body absorbs the change at the soft-tissue level even when the typist does not notice it cognitively.

UpWise is an iOS app that scores posture from a side-profile photo. While the camera does not capture wrist position directly, it does capture the upstream chain that determines whether the wrist can be neutral in the first place: shoulder protraction, head position, and the angle of the upper back over the desk. A scan that flags pronounced shoulder protraction means the seated geometry is forcing the hands into a closed-elbow position from which a split keyboard alone cannot rescue them. The piece on forward head posture covers that upstream chain in detail.

Buying advice, once you know what you are buying

If the four-condition view changes the question from will this fix my hands to how much will this contribute to the wrist-posture condition, the buying criteria shift accordingly. The 12-degree opening angle and 14-degree gable from Rempel 2007 are good defaults for fixed-geometry keyboards.⁶ Adjustable keyboards that let you tune those angles to your body width and shoulder posture are better, because the optimal geometry varies by user.

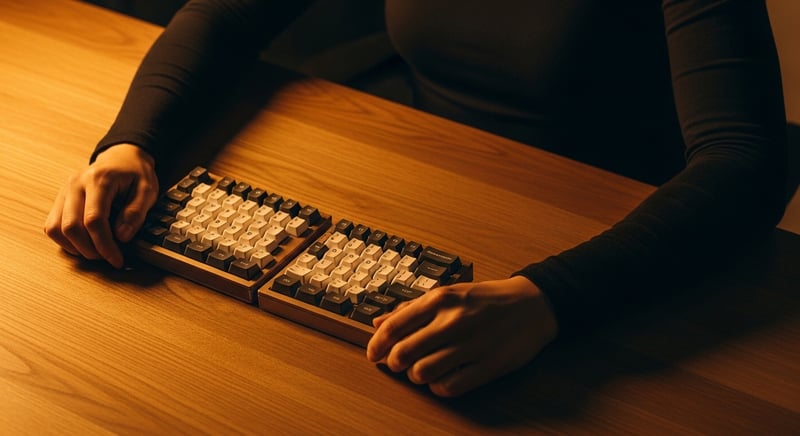

Separation width is the under-discussed parameter. Marklin's 2001 Physical Therapy study tested three separation distances: 20 centimeters apart, half shoulder width, and full shoulder width.⁵ All three reduced ulnar deviation relative to a conventional setup, but only full shoulder width put the wrist in the same neutral position as resting at the side. Most pre-configured split keyboards on the market sit somewhere between 20 centimeters and half shoulder width because they fit on a desk that way. Two-piece split keyboards that can be physically separated by cable or wireless link let you reach full shoulder width.

Tenting is the second high-value parameter. The Baker 2006 meta-analysis showed the largest single effect on forearm pronation came from tenting.³ Even a small (10 to 15 degree) gable angle reduces forearm pronation substantially. Keyboards with no tenting capability give up most of the wrist-position benefit. The piece on gaming posture setup covers the analogous question for high-duty-cycle game input.

What does not matter as much as the marketing implies: switch brand, key cap material, RGB lighting, programmability. These affect typing experience and customization options but not the four-condition genesis. UpWise does not currently rate keyboards, but it does flag whether your seated posture lets the alignment improvements work; the cleanest split-keyboard setup will not deliver if the upstream geometry is still forcing the wrists into the closed-elbow trap. Match the keyboard to a clean upstream chain and you cover one condition. The other three are still yours to address.

When to see a clinician

The keyboard discussion above is a workplace prevention question, not a clinical care question. Persistent numbness or tingling in the thumb, index, middle, and radial half of the ring finger that wakes you at night is the classic carpal tunnel pattern and warrants evaluation. Loss of grip strength or thenar muscle wasting at the base of the thumb is a more advanced sign and is past the point where keyboard changes alone will resolve the issue. Both presentations need a physician or hand-specialist physical therapist who can assess the median nerve directly through electromyography, nerve conduction testing, or focused clinical exam.

Pain that radiates up the forearm into the elbow, especially on the inside of the elbow, often points at cubital tunnel syndrome (ulnar nerve compression at the elbow) rather than carpal tunnel. Pain across the back of the wrist, the radial side, suggests de Quervain tenosynovitis. Each of these has its own diagnostic exam and its own treatment course. The keyboard contributes to all of them through the same multi-factor mechanism, but the clinical workup differs.

Short of those clinical signs, the self-management path is the four-condition path. Identify which of the four risk factors you can change. Change the one that moves your loading the most, first. The split keyboard is one option for the wrist-posture condition. Force, repetition, and duty cycle are usually changeable too, and often produce more improvement than the keyboard alone.
